Egg Carton Printers and Label Machines



Automatic label and two color, inside egg carton, printer. LP200





This system will accept one egg carton from 10 cell up to 12 cell, at a rate of up to 80 cartons per minute or 4800 cartons per hour. This system comes complete with:

• 2-lane offline vacuum denesters

• Two-color inside the lid printing capabilities

• Cold glue spray adhesive equipment

• Label feeder for non pre-pasted labels

• Mechanical press-down of label on two sides

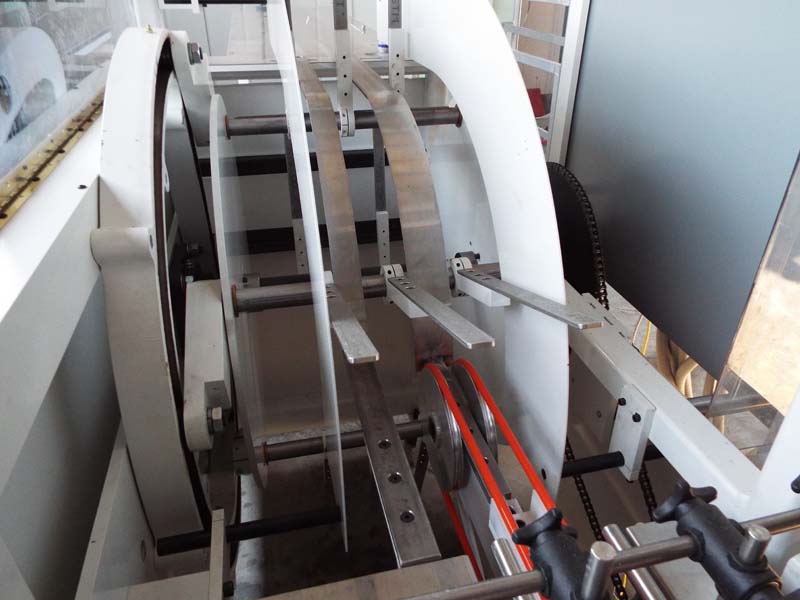

• Rotary paddle stacker

• Power 220V, 3 phase or single phase



Automatic Four color egg carton printer egg. P300





This system will accept one egg carton from 10 cell up to 12 cell, at a rate of up to 80 cartons per minute or 4800 cartons per hour. This system comes complete with:

• 4-lane vacuum arm denester

• 4-color top of lid print

• 2-colors each on front and rear sides

• 1-color inside print

• 1 rotary paddle stacker

• Power 220V, 3 phase or single phase



Automatic Pre-printed and glued egg carton applicator. LB-100

KMI Labelling System #LB100: This system comes complete as a standalone unit. A conveyor feed wipes on the label to the top, and side surfaces of egg trays. This system will accept one egg tray from 10 cell up to 18 cell, at a rate of up to 60 trays per minute or 3600 trays per hour. This system comes complete with:

• One automatic denester

• One automatic in and out conveyor

• One single automatic Label-aire wipe on labeller

• One automatic stacker and counter

• One pressing and bagging station with Label-aire advanced features

• Multiple, programmable label pages, for easy changeovers to different label sizes

• A stepper motor drive: For precise starting/stopping, increased reliability, wider range speed variability and lower maintenance

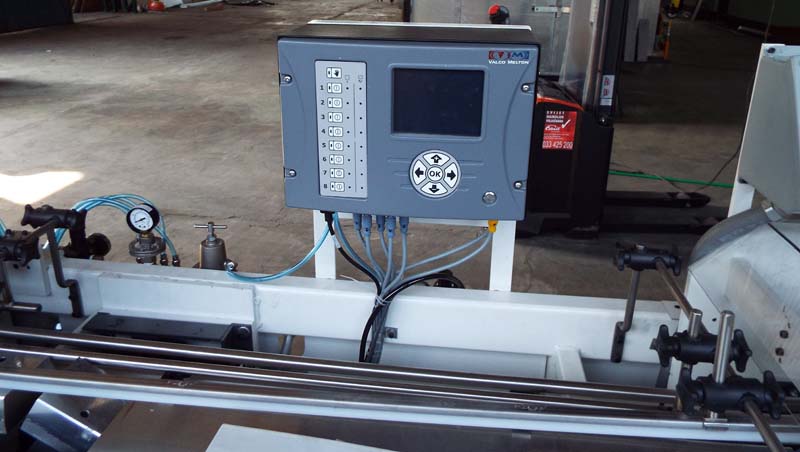

• R3 Digital display: Select from 5 languages, domestic or European configurations, standard or metric unit display and detailed alarm messages. Can rotate 360Deg in 90Deg increments.

• Labels are accurately applied even through extreme changes in product line speed.

• Optional smart powered rewind for dynamic web tension control

• Wipe-on applicator

• Optional quick action collapsible rewind, which allows easy removal of scrap liner
